Explosion Proof Double Stack Sieve Shaker

EberbachSKU: E6205.00

Title: 115V
Price:
Sale price$0.00

Description

*Accessories/Top Platforms sold separately. Please note: Eberbach Explosion Proof Sieve Shakers are built to order, the below specifications are examples but depending on the specific materials being sieved and component availability, some of the features may or may not be available. Call for pricing.

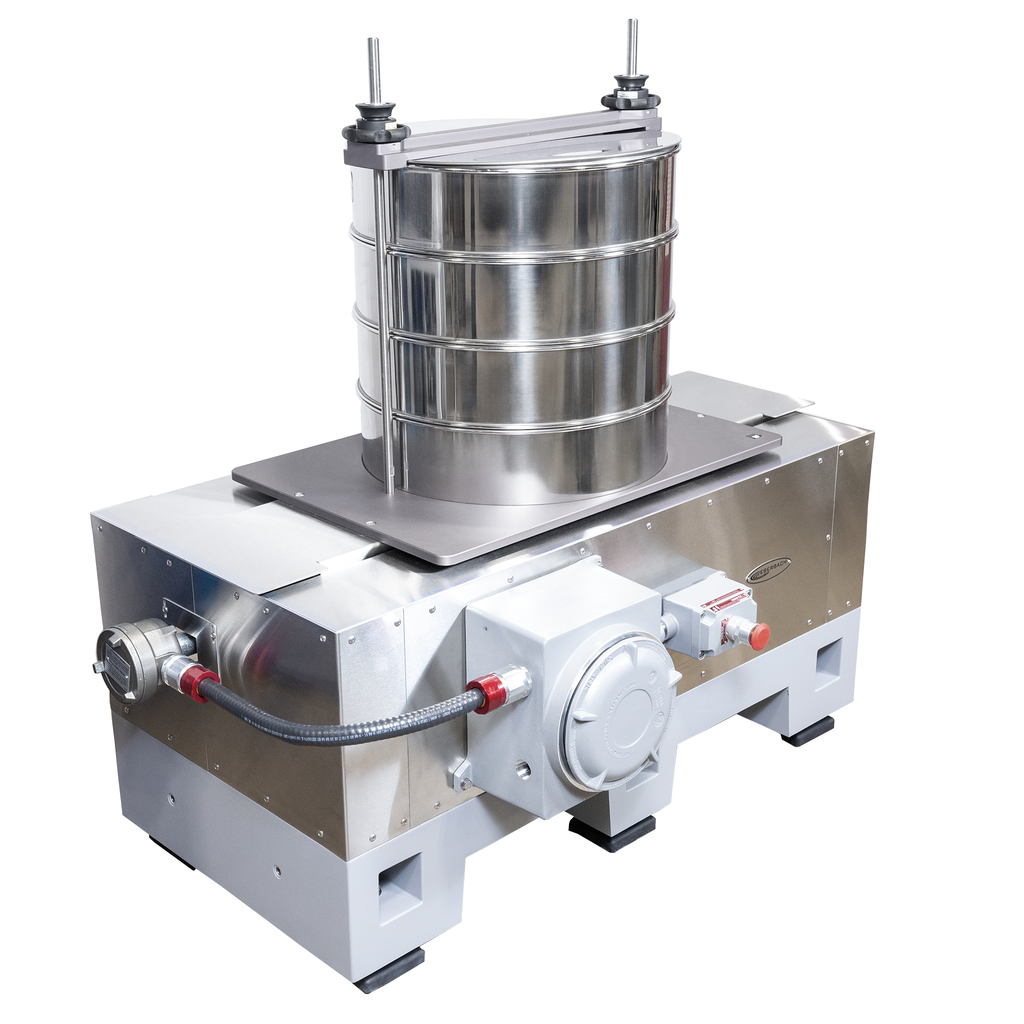

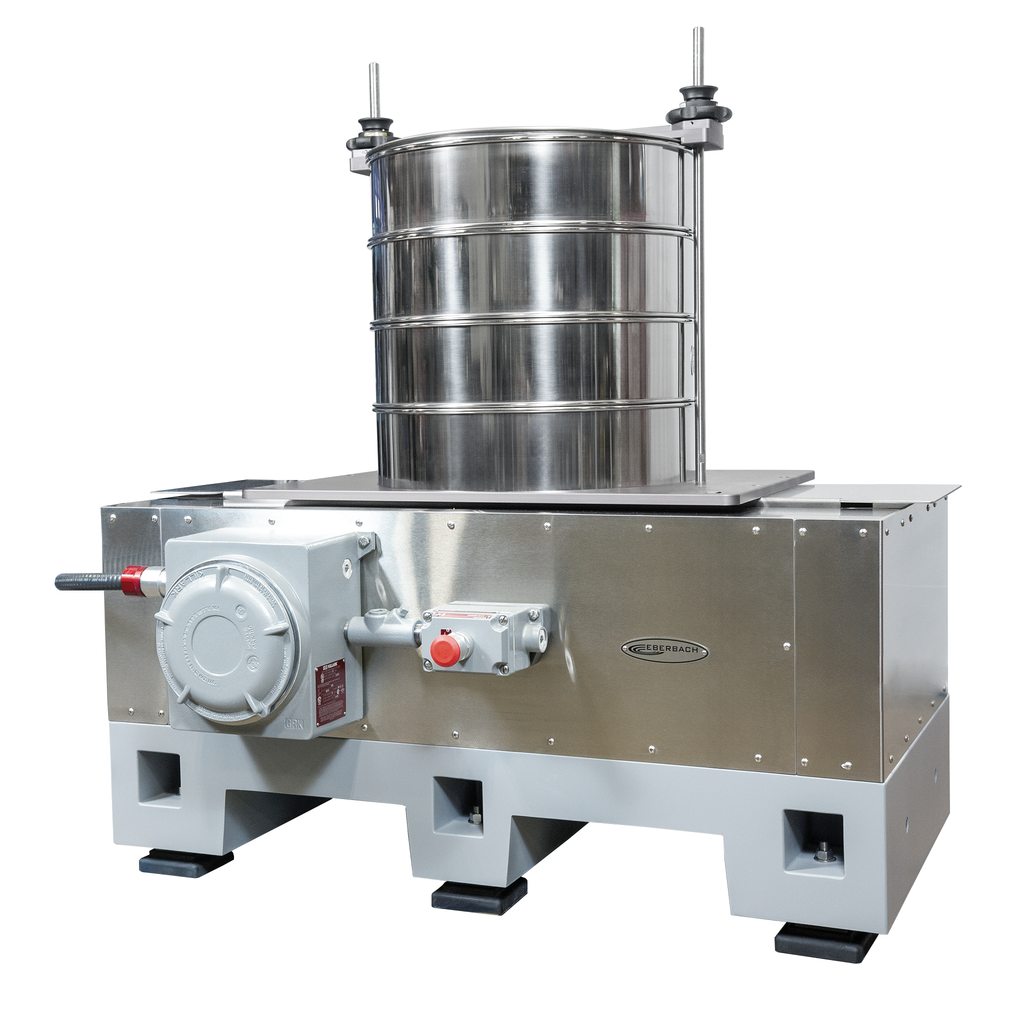

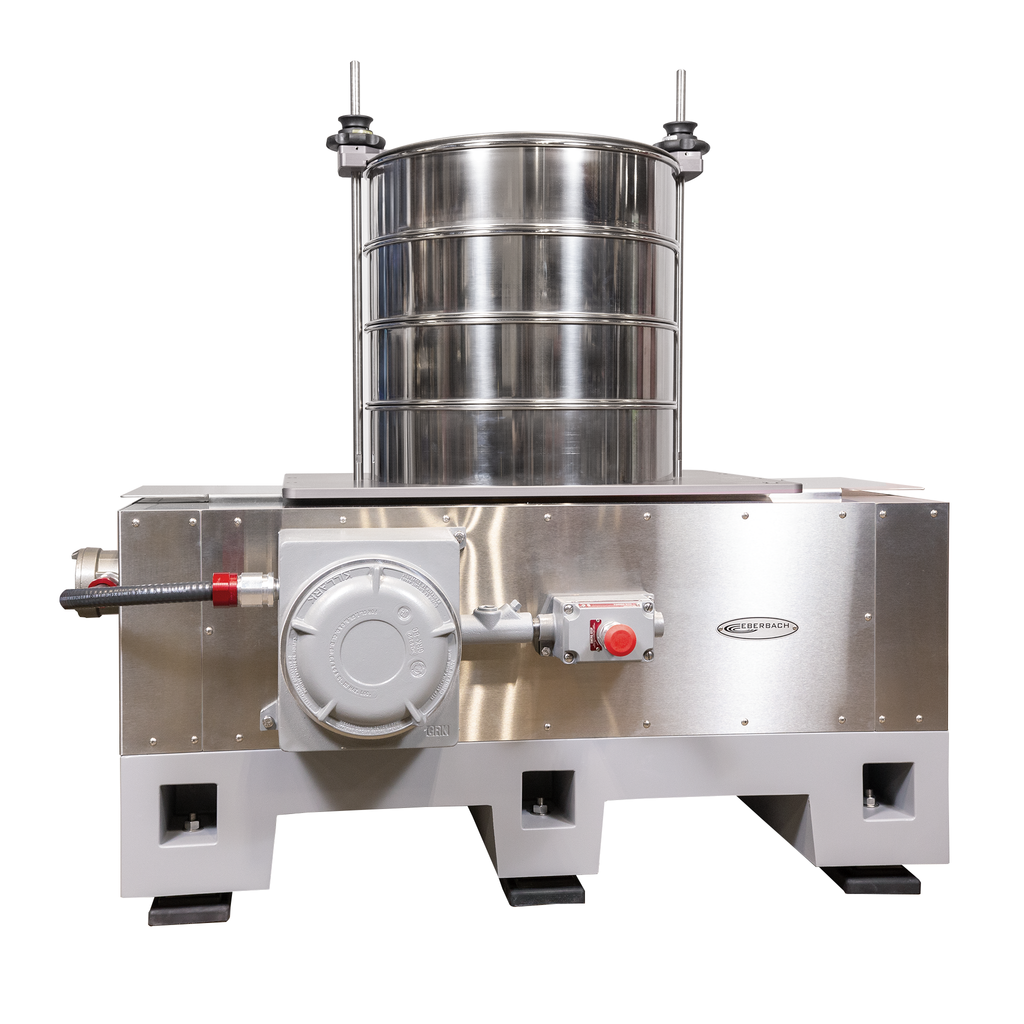

The E6205 explosion-proof sieve shaker is designed to be used in environments made hazardous by explosive vapors or dust. The reciprocal action of the sieve platform is enhanced by a vertical acceleration component imparted to the sample through rocker arm linkages thus increasing the efficiency of the separation. The shaking speed is 280 osc/min. A 0-99H:99M:99S timer and pilot lamp can be included optionally depending on component availability.

Please Note: Eberbach Explosion Proof Products are manufactured with rated and certified components, wired by third-party certified electricians with hazardous location certification in accordance with NEC standards and it is electrically intrinsically safe to the specifications outlined. In order to meet the hazardous location ratings in the field, Eberbach Explosion Proof products need to be installed by a certified electrician according to the NEC standards. Eberbach Explosion Proof products do not come standard with third-party/certified body hazardous location certification documentation, these costs are additional and subject to your location - please contact us for more information.

Specifications

Speed:

 280 osc/min

Type of Mounting:

Sunction Feet

Load Capacity:

80 lbs (6", 8", 10", 12" and 18" sieves up to 18" high)

Explosion Proof Electrical Rating:

Class 1, Div 1 groups C, D and Class II, Div 1, groups E,F,G

Power Requirements:

115V or 230V @ 50/60hz

Power Consumptions:

195 Watts

Size and Weight:

140 lbs | Length - 39" | Width - 20" | Height - 10"
